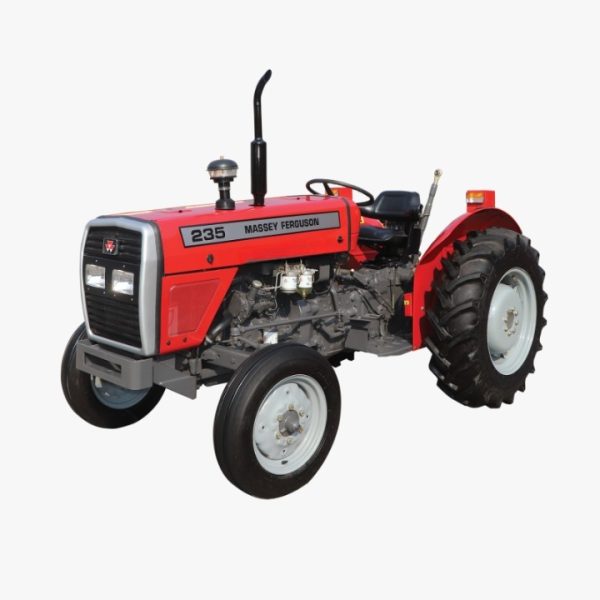

Massey Ferguson MF-235 - Specifications

The Massey Ferguson MF 235 50HP tractor is a reliable and fuel-efficient machine designed for small to medium-scale farming operations. Equipped with a durable Perkins diesel engine, it delivers smooth performance, strong torque, and excellent fuel economy for daily agricultural tasks.
Ideal for ploughing, cultivation, spraying, and haulage, the MF 235 tractor is widely trusted across Africa, SAARC, and global markets for its simplicity, low maintenance, and long service life.
Engine
• Engine Type: Perkins AD3.152 Diesel Engine
• Cylinders: 3
• Rated Power: 50 HP @ 2250 RPM
• Maximum Torque: 172 Nm @ 1600 RPM
• Cooling System: Water Cooled
• Fuel System: Direct Injection

Transmission
• Transmission Type: Sliding Gear Transmission
• Gearbox: 8 Forward + 2 Reverse
• Clutch Type: Dual Clutch

PTO (Power Take-Off)
• PTO Type: Live PTO
• PTO Power: 44 HP
• PTO Speed: 540 RPM

Hydraulics
• Hydraulic System: Draft, Position & Response Control
• Pump Type: Ferguson Hydraulic Pump
• Maximum Lifting Capacity: Approx. 2145 kg

Steering & Brakes
• Steering Type: Manual / Optional Power Steering
• Brakes: Oil-Immersed Multi-Disc Brakes
• Front Axle: Heavy-Duty Adjustable Front Axle

Tyres
• Front Tyres: 5.50 – 16
• Rear Tyres: 12.4 / 11 – 28

Dimensions
• Wheelbase: 1892 mm
• Overall Length: 3240 mm
• Overall Width: 1604 mm
• Ground Clearance: 295 mm
• Operating Weight: Approx. 1515 kg

Fuel Capacity
• Fuel Tank Capacity: 50 Litres
