NH 480 Power Plus – Specifications

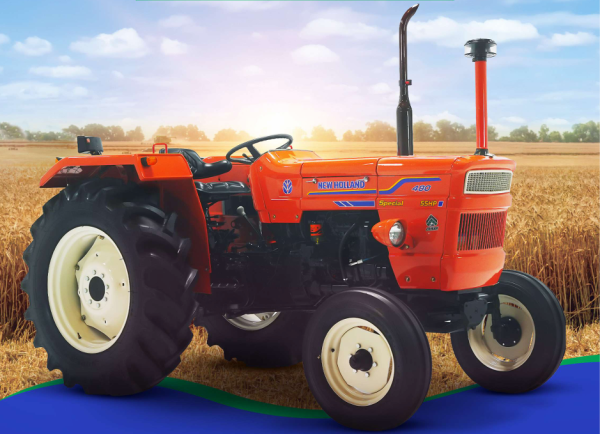

The New Holland Agriculture NH 480 Power Plus 55 HP tractor is a reliable and fuel-efficient machine designed for modern farming operations. Built for performance and durability, it is ideal for ploughing, cultivation, haulage, and general agricultural use.
This tractor is part of the  New Holland 400 Series,  known for strong build quality and consistent performance across diverse field conditions. It is widely used across Africa, South Africa, SAARC regions, and global markets.
Operating Weight


1,750 kg

Engine


Model: New Holland 8035.06

4-stroke, direct injection diesel engine

3 cylinders

Displacement: 2,710 cc

Compression ratio: 17:1

Max torque: 22.7 kgm @ 1500 RPM

Water-cooled with efficient radiator system

Transmission



Constant mesh gearbox

8 forward + 2 reverse gears

Synchromesh on selected gears

Differential lock with pedal actuation

Dual plate dry clutch

Separate controls for transmission & PTO

Power Take-Off (PTO)



Fully independent PTO

540 RPM @ 2160 engine RPM

6-spline shaft (35 mm)

High-speed PTO option available

Hydraulic Lift



Draft & position control system

Pump capacity: 22.7 L/min

Relief pressure: 150–170 kg/cm²

3-point linkage (Category II)

Lifting capacity: 1,400 kg

Turning Radius



With brakes: 3,400 mm

Without brakes: 3,900 mm

Steering



Optional hydro-assisted steering

Brakes



Dry band-type service brakes

Mechanical parking brake

Tyres



Front: 6.00-16

Rear: 14.9/13-28

Fuel & Fluid Capacity



Fuel tank: 54 litres

Engine oil: 8 litres

Hydraulic transmission: 18 litres

Air cleaner: 1 litre

Electrical System



12V system

3.35 HP starter motor

400W alternator

100 Ah battery

Dimensions



Wheelbase: 1,940 mm

Length: 2,960 mm

Ground clearance: 480 mm

Height (hood): 1,390 mm

Height (steering): 1,490 mm


Contact Farmac Inc for latest price, specifications, and export availability.
